PRODUCTS

SOLAR PANELS

Polycrystalline silicon photovoltaic modules

40W | 50W | 75W | 100W | 120W | 150W | 200W | 250W | 300W

  • 12 year product warranty.
  • 30 year performamnce warranty.
    • Initial 12 year performance warranty upto 91.2% power output.
    • Further 18 year performance warranty upto 80.6% power output.

Module Rated Power
(PMax)		 Tolerance Rated Current
(Imp)		 Rated Voltage
(Vmp)		 Short Circuit Current
(Isc)		 Open Circuit Voltage
(Voc)		 Module Efficency Module Size
Unit W % A V A V % (mm)
APSP- 40W/36 40 0 +/- 3% 2.31A 17.28V 2.54A 21.6V 15.4 525*665*35
APSP- 50W/36 50 0 +/- 3% 2.89A 17.28V 3.18A 21.6V 15.4 630*665*35
APSP- 75W/36 75 0 +/- 3% 4.36A 17.28V 4.74A 21.6V 15.4 890*665*35
APSP- 100W/36 100 0 +/- 3% 5.79A 17.28V 6.28A 21.6V 15.4 1207*672*35
APSP- 120W/36 120 0 +/- 3% 6.95A 17.28V 7.68A 21.6V 15.4 1320*670*35
APSP- 150W/36 150 0 +/- 3% 8.68A 17.28V 9.87A 21.6V 15.4 1480*670*35
APSP- 200W/36 200 0 +/- 3% 6.58A 30.4V 6.98A 37.35V 15.4 1400*992*35
APSP- 250W/60 250 0 +/- 3% 8.24A 30.4V 8.98A 37.35V 15.4 1640*992*35
APSP- 300W/72 300 0 +/- 3% 8.05A 37.11V 8.63A 45.48V 15.4 1950*992*40

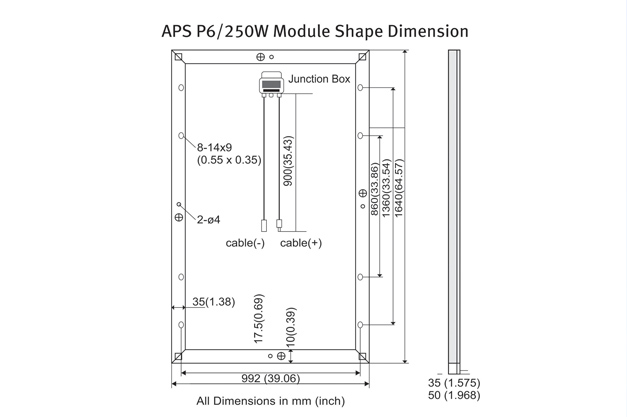

Mechanical Characteristics APS P6/250W
External Dimensions 1640 x 992 x 35 mm
Solar Cells Polycrystalline 156 x 156 mm (60pcs)
Front Glass 3.2mm tempered glass, low iron
Frame Anodized/Electrophoretic aluminium aloy
Junction Box IP65 / Ip67
Output Cables 40mm2, symmetrical lengths 900mm
Connectors MC4 Compatible
Maximum Snow Load 550kg/m2
Maximum Wind Load 200km/h
Hailstone Impact Test 80km/h for 25mm ice ball
Weight 17.4kg

SOLAR INVERTERS

The SolaX Inverter

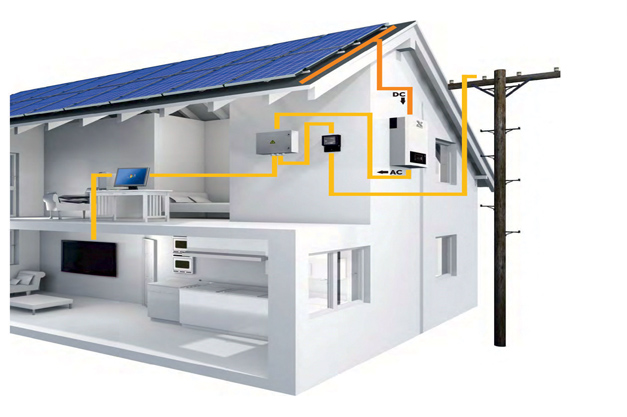

The solar inverter is a critical technological component that is the heart of any PV plant. A solar inverter or PV inverter, converts the variable direct current (DC) output of the photovoltaic (PV) solar panel into utility frequency alternating current (AC) that can be stored or fed into a commercial electrical grid, allowing the use of ordinary commercial appliances. At SolaX we are creating the inverters of tomorrows.
